ZS系列直線振動篩

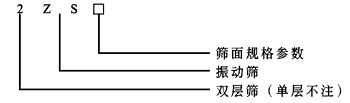

一、礦用振動篩型號
二、技術參數
型號
篩面
規格
mm
(長x寬)
篩面
層數
入料
粒度
篩孔
尺寸
mm
振幅
mm
篩面
傾角
(度)
外形尺寸
mm
（長x寬x高） 型號 功率
(KW) 振次
(次/分) ZS0615 1500X600 1 < 150
3
5
10
15
20
25
50 5
|
7
0
|
15
可
調 YZD-31-6 2x0.75 1000 2035x1070x1340 2ZS0615 2 YZD-31-6 2x0.75 2035x1070x1430 ZS0918 1800X900 1 YZD-41-6 2x1.5 2200x1420x1570 2ZS0918 2 YZD-41-6 2x1.5 2200x1420x1660 ZS1224 2400X1200 1 YZD-51-6 2x2.2 2793x1800x1770 2ZS1224 2 YZD-52-6 2x3 2793x1800x1860 ZS1230 3000X1200 1 YZD-61-6 2x3.7 3250x1800x2200 2ZS1230 2 YZD-62-6 2x4.5 3250x1800x2290 ZS1530 3000X1500 1 YZD-62-6 2x4.5 3400x2220x2130 2ZS1530 2 YZD-71-6 2x5.5 3400x2220x2220 ZS1536 3600X1500 1 YZD-71-6 2x5.5 4050x2160x2120 2ZS1536 2 YZD-71-6 2x5.5 4050x2160x2210 ZS1836 3600X1800 1 < 180 5
|
15
可
調 YZD-81-6 2x7.5 4000x2520x2210 2ZS1836 2 YZD-81-6 2x7.5 4000x2520x2300 ZS1842 4200X1800 1 YZD-81-6 2x7.5 4864x2600x2400 2ZS1842 2 YZD-81-6 2x7.5 4864x2600x2500
三、概述
ZS系列直線振動篩,礦用振動篩應用自同步振動原理，礦用振動篩采用振動電機作為振源，橡膠彈簧作為誠據器及高耐磨材質作篩板，偏心壓緊密封等，具有壽命長、噪音低、篩分效率高等特點，礦用振動篩適合于燒結礦、自然礦、焦炭及其它粉粒狀物科的高效篩分，廣泛應用于冶金、礦山、煤炭、建材等行業。
一、礦用振動篩型號
二、技術參數
型號 | 篩面 | 篩面 | 入料 | 篩孔 | 振幅 | 篩面 | 外形尺寸 mm （長x寬x高） | |||
型號 | 功率 (KW) | 振次 (次/分) | ||||||||
ZS0615 | 1500X600 | 1 | < 150 |
3 5 10 15 20 25 50 | 5 | 0 | 15 可 調 | YZD-31-6 | 2x0.75 | 1000 | 2035x1070x1340 |
2ZS0615 | 2 | YZD-31-6 | 2x0.75 | 2035x1070x1430 | ||||||
ZS0918 | 1800X900 | 1 | YZD-41-6 | 2x1.5 | 2200x1420x1570 | |||||
2ZS0918 | 2 | YZD-41-6 | 2x1.5 | 2200x1420x1660 | ||||||
ZS1224 | 2400X1200 | 1 | YZD-51-6 | 2x2.2 | 2793x1800x1770 | |||||
2ZS1224 | 2 | YZD-52-6 | 2x3 | 2793x1800x1860 | ||||||
ZS1230 | 3000X1200 | 1 | YZD-61-6 | 2x3.7 | 3250x1800x2200 | |||||
2ZS1230 | 2 | YZD-62-6 | 2x4.5 | 3250x1800x2290 | ||||||
ZS1530 | 3000X1500 | 1 | YZD-62-6 | 2x4.5 | 3400x2220x2130 | |||||
2ZS1530 | 2 | YZD-71-6 | 2x5.5 | 3400x2220x2220 | ||||||
ZS1536 | 3600X1500 | 1 | YZD-71-6 | 2x5.5 | 4050x2160x2120 | |||||
2ZS1536 | 2 | YZD-71-6 | 2x5.5 | 4050x2160x2210 | ||||||
ZS1836 | 3600X1800 | 1 | < 180 | 5 | 15 可 調 | YZD-81-6 | 2x7.5 | 4000x2520x2210 | |||
2ZS1836 | 2 | YZD-81-6 | 2x7.5 | 4000x2520x2300 | ||||||
ZS1842 | 4200X1800 | 1 | YZD-81-6 | 2x7.5 | 4864x2600x2400 | |||||
2ZS1842 | 2 | YZD-81-6 | 2x7.5 | 4864x2600x2500 | ||||||
三、概述
ZS系列直線振動篩,礦用振動篩應用自同步振動原理，礦用振動篩采用振動電機作為振源，橡膠彈簧作為誠據器及高耐磨材質作篩板，偏心壓緊密封等，具有壽命長、噪音低、篩分效率高等特點，礦用振動篩適合于燒結礦、自然礦、焦炭及其它粉粒狀物科的高效篩分，廣泛應用于冶金、礦山、煤炭、建材等行業。
